Urethane Coupling L150U
P/N: L150U
13
People watching this product now!
Description
L150U TB WOOD’S Urethane Spider Insert: L150, 1,860 in-lb Rated Torque, 5,000 RPM Max., -30° to 160°F

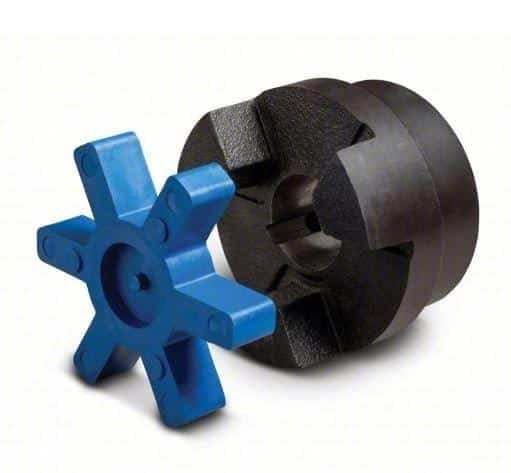

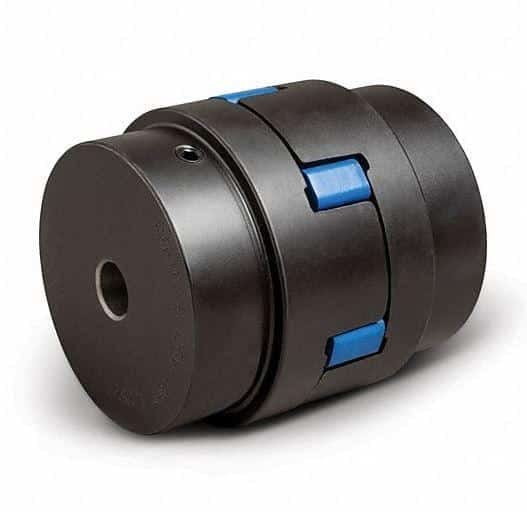

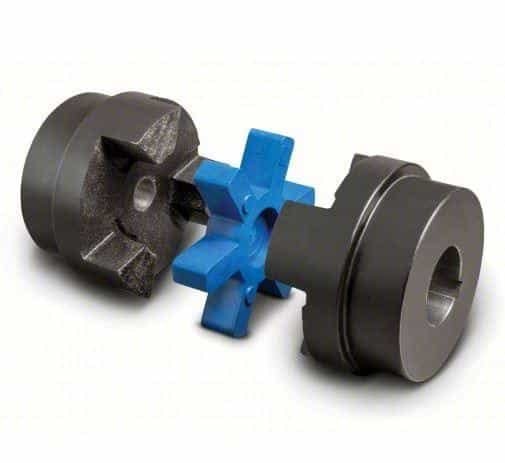

- Jaw Coupling Spiders help to dampen shock between coupling hubs and accommodate small amounts of angular, parallel, and axial misalignment. A complete assembly requires one spider and two hubs, sold separately
Product Specification:
Item – Jaw Coupling SpidersJaw Coupling Insert
Size – Jaw CouplingsL150
Material – SpidersUrethane
Rated Torque1,860 in-lb
Max. RPM5,000 RPM
HP Rating @ 100 RPM3.0
Temp. Range-30° to 160°F
Max. Bore (In.)1.875
HP Rating @ 300 RPM9.0
HP Rating @ 1200 RPM36
HP Rating @ 1800 RPM54
HP Rating @ 3600 RPM108
ColorBlue
Length (In.)3.72 in
Width (In.)3.72 in
Height (In.)0.88 in
Accommodates1° Angular and 0.015 in of Parallel Misalignment
