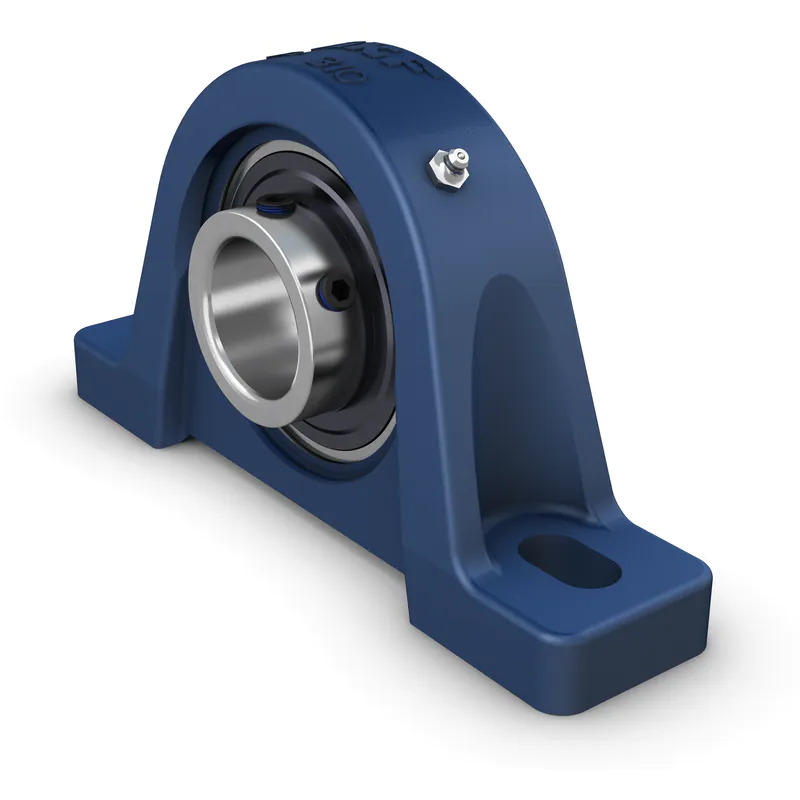

SKF UCP208 Ball Bearing
Brand: SKF
P/N: UCP208
20
People watching this product now!
Description
SKF UCP208 Ball Bearing
SKF UCP208 Ball Bearing
- It is a type of rolling-element bearing that uses balls to reduce friction between two moving parts. They are mechanical components commonly found in various machines and equipment to enable smooth rotation and reduce friction in applications like automotive engines, industrial machinery, and household appliances. These are one of the most common types of bearings due to their efficiency and durability.
Product Specification:
| Bearing width, total | 49.2 mm |
| Centre distance between bolt holes | 137 mm |
| Centre height (pillow block) | 49.2 mm |
| Housing overall width | 49 mm |
| Shaft diameter | 40 mm |
| Basic dynamic load rating | 32.5 kN |
| Basic static load rating | 20 kN |
| Limiting speed | 3 750 r/min |
| Bore type | Cylindrical |
| Coating | Without |
| Fastening bolt hole type | Plain |
| Housing type | Pillow block |
| Lubricant | Grease |
| Material, bearing | Bearing steel |
| Material, housing | Cast iron |
| Number of bolt holes for fasteners | 2 |
| Relubrication hole | With |
| Relubrication nipple | With |
| Retaining feature, inner ring | Set screws |
| Rubber seating ring | Without |
| Sealing type | Contact, standard |
| Sealing, bearing | Seal and flinger on both sides |
| Sealing, unit | Without |
