SKF 7014 ACD/P4ADGA Single Row Angular Ball Bearing
Brand : SKF
P/N : 7014 ACD/P4ADGA
14
People watching this product now!
Description
SKF 7014 ACD/P4ADGA Single Row Angular Ball Bearing
SKF 7014 ACD/P4ADGA Single Row Angular Ball Bearing
Product Description :

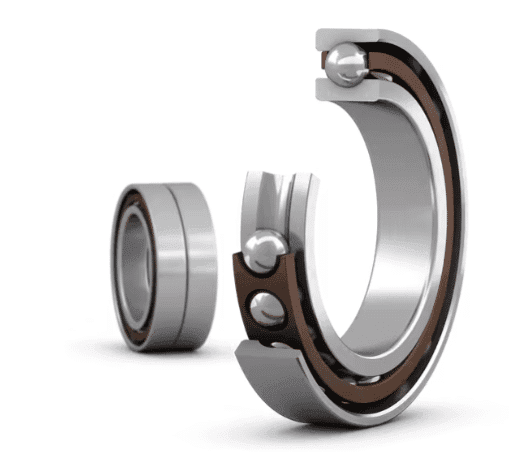

- It is a type of bearing designed to support both radial and axial loads. It consists of an inner ring, an outer ring, a set of balls, and a cage to hold the balls in place. The raceways are angled, allowing the bearing to accommodate axial loads in one direction.
- These bearings can handle both radial and axial loads, making them versatile for various applications. The axial load capacity depends on the angle of the raceway.
- These super-precision, high-speed E design, single row angular contact ball bearings accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate very high speeds.
Product Specification :
| Bore diameter | 70 mm |
| Outside diameter | 110 mm |
| Width | 40 mm |
| Contact angle | 25 ° |
| Basic dynamic load rating | 79.3 kN |
| Basic static load rating | 86.5 kN |
