SKF 2307EKTN9/C3 Ball Bearing
Brand: SKF
P/N: 2307EKTN9/C3
19
People watching this product now!
Description

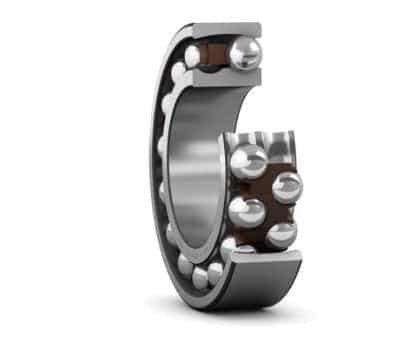

SKF 2307EKTN9/C3 Ball Bearing
SKF 2307EKTN9/C3 Ball Bearing
- It is a type of rolling-element bearing that uses balls to reduce friction between two moving parts. These are one of the most common types of bearings due to their efficiency and durability. They come in various sizes and configurations to suit different applications, and they play a critical role in the smooth operation of countless machines and mechanical systems. These are the most common type and are used in a wide range of applications. They have deep, raceway grooves in both the inner and outer rings, allowing them to support radial and axial loads.
Product Specification:
| Bore diameter | 35 mm |
| Outside diameter | 80 mm |
| Width | 31 mm |
| Basic dynamic load rating | 39.7 kN |
| Basic static load rating | 11.2 kN |
| Reference speed | 16 000 r/min |
| Limiting speed | 12 000 r/min |
| Retaining feature, inner ring | None |
| Locating feature, bearing outer ring | None |
| Number of rows | 2 |
| Bore type | Tapered 1:12 |
| Cage | Non-metallic |
| Radial internal clearance | C3 |
| Tolerance class | Normal |
| Material, bearing | Bearing steel |
| Coating | Without |
| Sealing | Without |
| Lubricant | None |
| Relubrication feature | Without |
