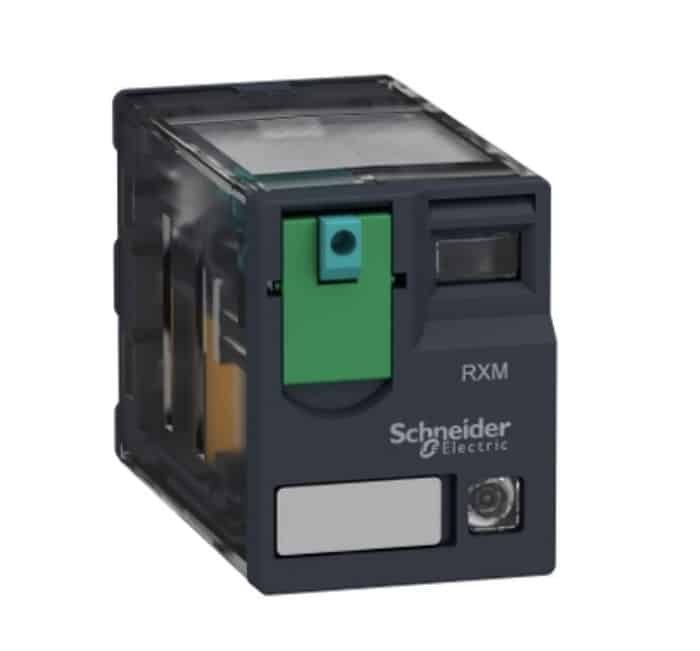

Schneider Electric RXM4AB2BD Control Relay
Brand: Schneider Electric
P/N: RXM4AB2BD
10
People watching this product now!
Description
Schneider Electric RXM4AB2BD Control Relay
- It is an electrical device that functions as a switch controlled by an electrical signal. It uses an electromagnet to mechanically switch open or close a set of electrical contacts, allowing it to control the flow of electrical current in an electrical circuit.
Product Specification :
| average coil consumption | 0.9 W |
|---|---|
| Drop-out voltage threshold | >= 0.1 Uc |
| operate time | 20 ms |
| release time | 20 ms |
| average coil resistance | 650 Ohm at 20 °C +/- 10 % |
| Rated operational voltage limits | 19.2…26.4 V DC |
| Safety reliability data | B10d = 100000 |
| Protection category | RT I |
| Test levels | Level A group mounting |
| Operating position | Any position |
| CAD overall height | 82.8 mm |
| CAD overall depth | 80.35 mm |
| Net weight | 0.037 kg |
