Schneider Electric A9N26476 MX Shunt trip
Brand: Schneider Electric
P/N: A9N26476
17
People watching this product now!
Description

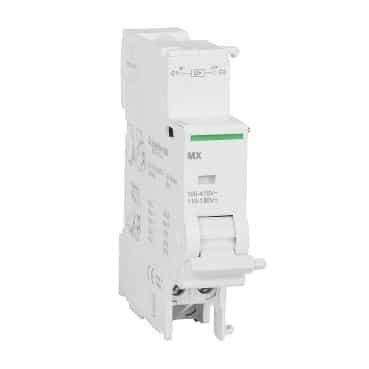

Schneider Electric A9N26476 MX Shunt trip
Schneider Electric A9N26476 MX Shunt trip
This MX product is a shunt trip release auxiliary. It is fixed on DIN rail. The Uc control circuit voltage is 100VAC to 415VAC with a 50/60Hz frequency, or 110VDC to 130VDC. The dimensions are (W) 18mm x (H) 82.5mm x (D) 73.5mm.
Product Specification:
| Local signalling | Action indicator |
|---|---|
| Mounting mode | Fixed |
| Mounting support | 35 mm symmetrical DIN rail |
| Comb busbar and distribution block compatibility | Top: YES |
| Height | 82.5 mm |
| Width | 18 mm |
| Depth | 73.5 mm |
| Net weight | 60 g |
| Colour | White |
| Connections – terminals | Screw clamp terminal (bottom) – 2 cable(s) 1.5 mm² – flexible Screw clamp terminal (bottom) – 2 cable(s) 1.5 mm² – flexible with ferrule Screw clamp terminal (bottom) – 1 cable(s) 0.5…2.5 mm² – rigid |
| Wire stripping length | 9 mm for bottom connection |
| Tightening torque | 1 N.m bottom |
| Compatibility code | MX |
