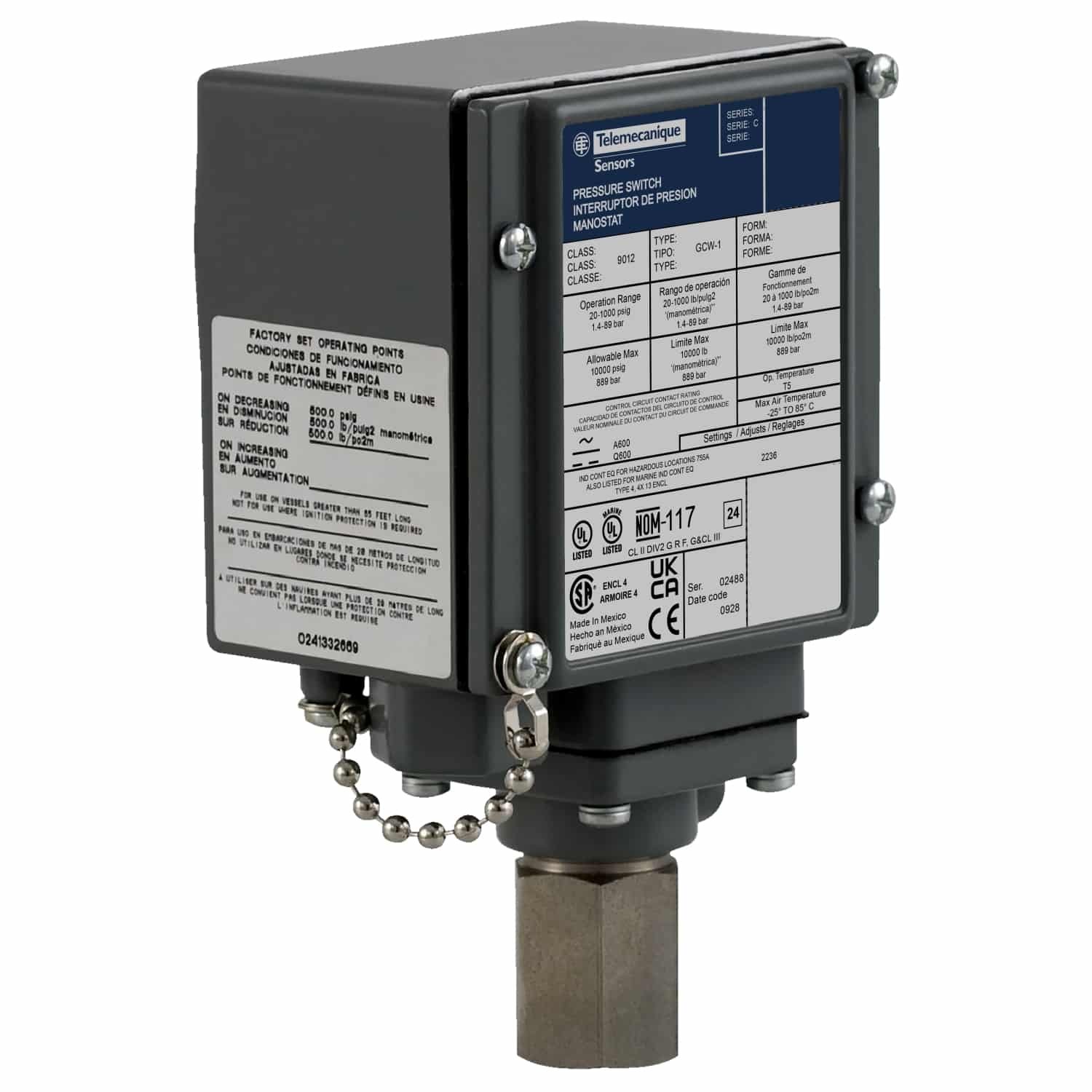

Schneider Electric 9012GCW3 Pressure Switch

Schneider Electric 9012GCW3 Pressure Switch

This switch has a piston actuator which can be operated from any position, adjustable differential scale for internal settings and regulation of 2 thresholds. Offers mechanical durability of about 3 million operating cycl

  • It is approximate adjustable differential at mid range of 289psi to 1260psi and a maximum pressure of 20000psi.
  • It is available in size of 3.5inch (W) x 2.63inch (D) x 6.37inch (H) and weighs 3lb.

Product Specification:

Pressure sensor typeElectromechanical pressure switch
Pressure sensor name9012G
Pressure sensor size5600 psi (38610.64 kPa)
Maximum pressure20000 psi
Contacts type and compositionNC-NO, SPDT-DB, Form Z, snap action, silver nickel contacts
Controlled fluidHydraulic oil -15…250 °F (-26…121 °C))
Selected corrosive gases
Air
Non-corrosive gas
Fluid connection type0.25 inch 18 NPTF UL 508
Pressure switch type of operationRegulation between 2 thresholds
Scale typeAdjustable differential
