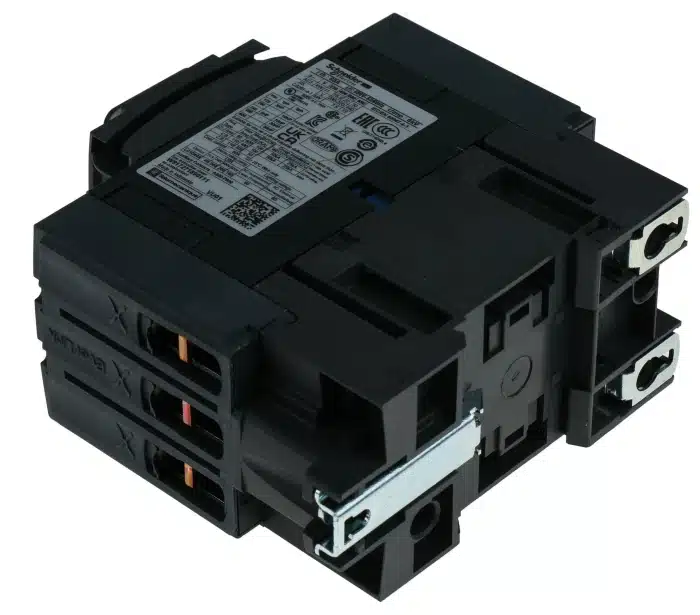

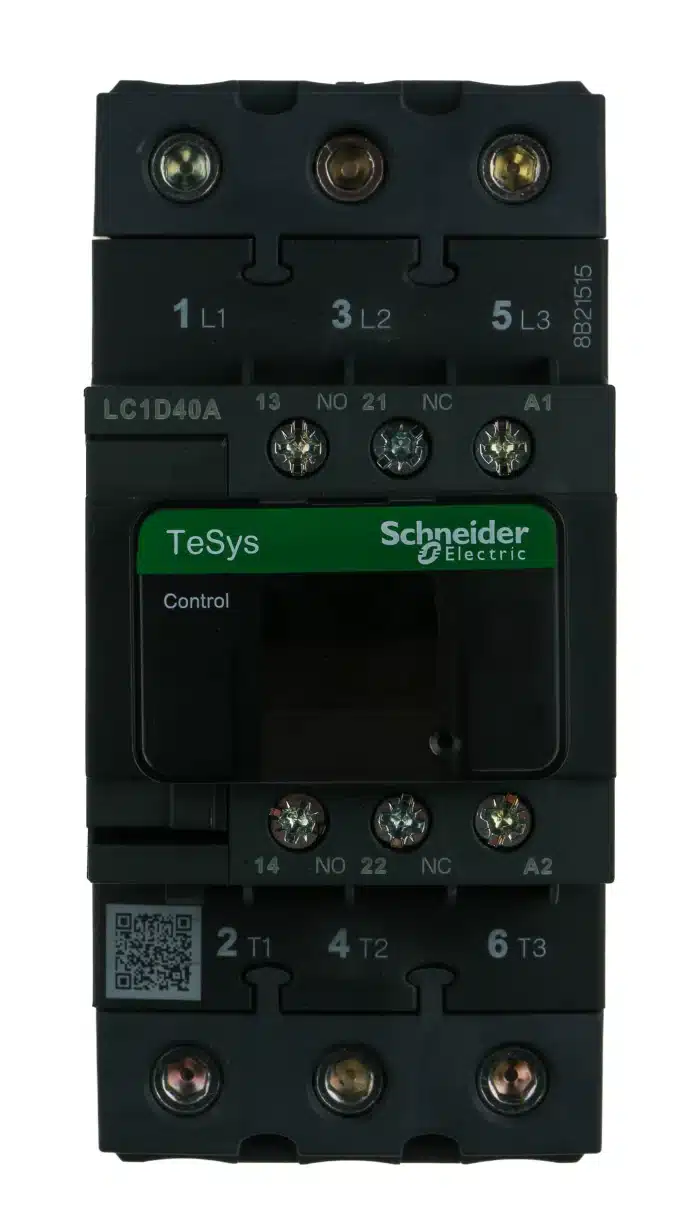

Schneider Electric 6658021 Contactor

It is an electrical device use to control the flow of electricity in an electrical circuit. Contactors are commonly use in industrial and commercial applications where there is a need to switch large electrical loads. Contactors have a set of electrical contacts that close or open the circuit.

Coil Voltage	230 V ac
Number of Poles	3
Contact Voltage Rating	690 V ac
Contact Current Rating	40 A
Range	TeSys D
Series	LC1D
Power Rating	18.5 kW
Normal State Configuration	3NO
Number Of Auxiliary Contacts	2
Auxiliary Contact Configuration	1NO + 1NC
Terminal Type	Everlink
Width	55mm
Length	122mm
Depth	120mm
Better World Product	Yes
Better World Verification	Green Premium
Minimum Operating Temperature	-5°C
Pole and Throw Configuration	3P
Maximum Operating Temperature	+60°C
Mounting Style	Plate, Rail Mounting
Input Current	60A
Control Voltage	230 V ac
