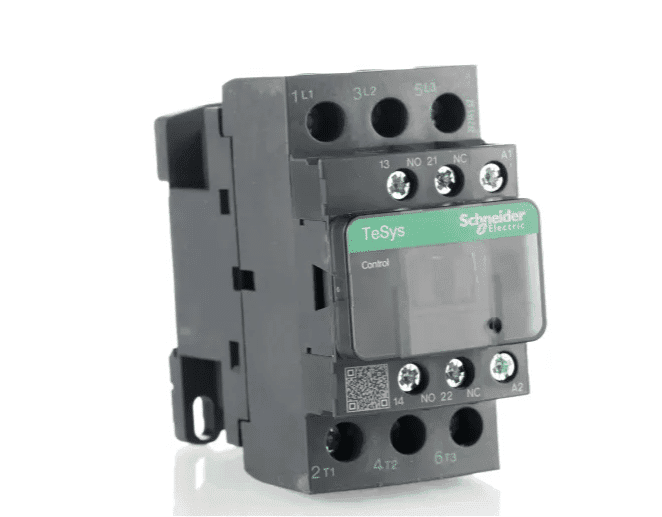

Schneider Electric 394-9740 Contactor

Schneider Electric 394-9740 Contactor

Schneider Electric 394-9740 Contactor

Product Description :

• It is an electrical relay used to control an electric motor, lighting, heating elements, or other electrical loads in industrial and commercial applications. It is designed to handle large currents and voltages, making it suitable for switching heavy-duty loads.
• The main switching mechanism of a contactor consists of contacts made from materials capable of withstanding high currents and repeated operations without excessive wear or arcing. Contacts can be made of materials like silver alloy or other high conductivity materials.
• They are essential components in electrical systems for controlling and switching high-power loads safely and efficiently. Their robust design and ability to handle large currents make them indispensable in industrial, commercial, and residential applications where reliable electrical control is required.

Product Specification :

• Coil Voltage	24 V ac
  Number of Poles	3
  Contact Voltage Rating	690 V ac
  Contact Current Rating	18 A
  Power Rating	7.5 kW
  Series	LC1D
  Range	TeSys D
  Function	Motor Control
  Normal State Configuration	3NO
  Number Of Auxiliary Contacts	2
  Auxiliary Contact Configuration	1NO + 1NC
  Terminal Type	Screw
  Width	45mm
  Length	77mm
  Depth	86mm
