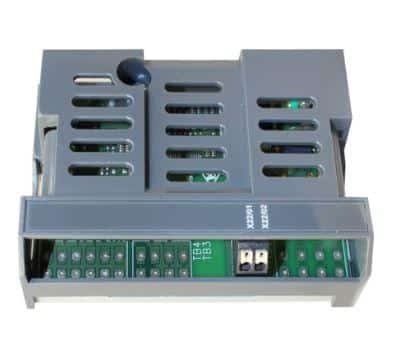

Parker 70040500 Resolver Feedback Module

Parker 70040500 Resolver Feedback Module

Parker 70040500 Resolver Feedback Module

• A resolver is a type of rotary position sensor that works on the principle of electromagnetic induction. It consists of a rotor and a stator, and as the rotor rotates, it induces an electrical signal in the stator windings. The amplitude and phase of this induced signal change with the rotor’s angular position, allowing for precise measurement of angle or speed.

Product Specification:

Maximum Speed: 70,000 rpm @ 12-bits
Carrier Output Signal: 4-12V rms, 2 kHz – 20 kHz
Maximum Carrier Supply: 70mA rms
Maximum Input Voltage: ±24V pk differential
Accuracy: <±10 arc min
Resolution: 12-16 bits
Inputs: Differential inputs Zin ~ 2.4 kΩ
Isolation: Not isolated
