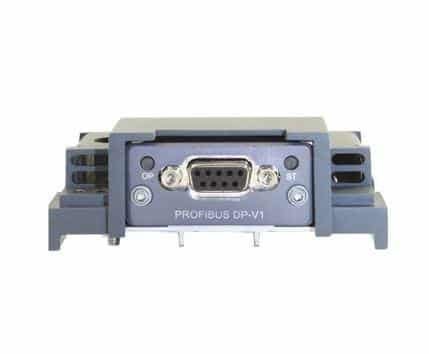

Parker 7003PB00 AC30 Profibus DP-V1 Card

Parker 7003PB00 AC30 Profibus DP-V1 Card

Parker 7003PB00 AC30 Profibus DP-V1 Card

The AC30 Profibus DP-V1 Card is an accessory or expansion module used with the Parker SSD Drives AC30 series variable frequency drives (VFDs). This card allows the AC30 drive to communicate with and be controlled by a Profibus DP-V1 (Decentralized Periphery, Version 1) network, which is a popular industrial communication protocol used for automation and control systems

Product Specification :

• Profibus DP-V1
• Up to 12Mbps transmission rate
• Galvanically isolated bus via DB9F female Connector
• Status and Operation Mode LEDs
• Up to a total of 152 bytes of cyclic I/O data
• Up to 68 bytes of Class 1 and Class 2 acyclic data
• Up to 152 bytes of Configuration data
