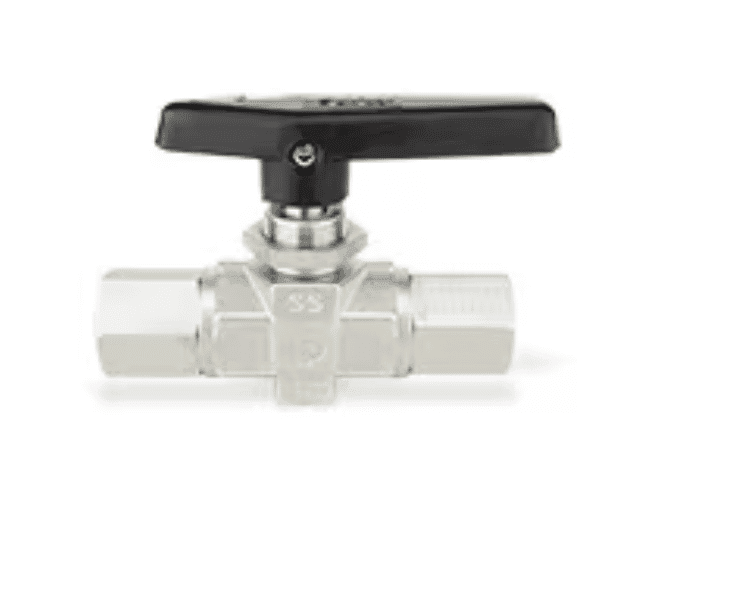

Parker 4A-B6LJ2-SSP Ball Valve
Brand : Parker
P/N : 4A-B6LJ2-SSP
20
People watching this product now!
Description
Parker 4A-B6LJ2-SSP Ball Valve
Parker 4A-B6LJ2-SSP Ball Valve
Product Description :
- It is a type of valve that uses a spherical disc (the ball) to control the flow of fluid through a pipe.
- The valve consists of a ball with a hole (or port) through the middle, mounted in a housing. When the ball is rotated, the hole aligns with the flow path to allow fluid to pass or is turned perpendicular to block the flow.
- Typically operated manually with a lever or automatically with an actuator.
Product Specification :
| Maximum Operating Temperature: | 232 °C, 450 °F |
| Minimum Operating Temperature: | -54 °C, -65 °F |
| Materials of Construction: | Stainless Steel 316 |
| Flow Rate: | 1.04 Cv |
| Connection 1 Size: | 1/4 inch, Two Ferrule Compression |
| Connection 2 Size: | 1/4 inch, Two Ferrule Compression |
| Valve Type: | 2-Way |
| Seat Material: | PEEK |
