Nice 7520 Ball Bearing
Brand : Nice
P/N: 7520
16
People watching this product now!
Description

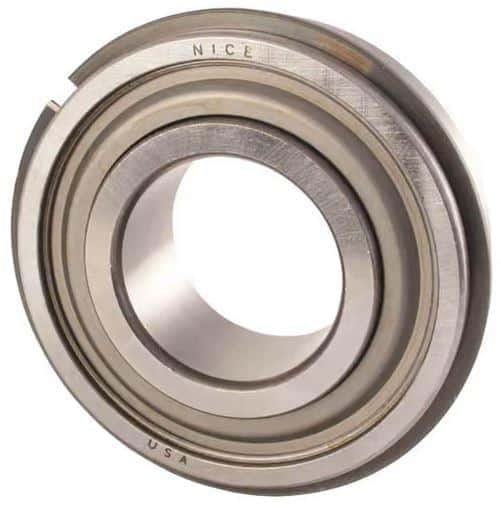

Nice 7520 Ball Bearing
Nice 7520 Ball Bearing
- They are a fundamental component in many devices, ranging from industrial machinery to household appliances.
Product Specification:
| Bore Type | Round |
|---|---|
| Bore Diameter | 1.2500 in |
| Outside Diameter | 2.5625 in |
| Overall Width | 0.7500 in |
| Outside Ring Shape | Straight With Snap Ring Groove |
| Row Type & Fill Slot | Single Row Non-Fill Slot |
| Snap Ring Included | With Snap Ring |
| Internal Clearance | C0 |
| Maximum Operating Temperature | 300 °F |
| Operating Temperature Range | Maximum of +300 °F |
| Dynamic Load Capacity | 5360 lbf |
| Static Load Capacity | 2620 lbf |
| Precision Rating | Not Rated |
| Seal Type | Sealed |
| Finish/Coating | Chrome Steel |
| Bearing Material | 52100 Bearing Quality Steel |
| Cage Material | Nylon |
| Inner Ring Width | 0.8750 in |
| Outer Ring Width | 0.7500 in |
| Fillet Radius | 0.035 in |
| Maximum RPM | 5000 rpm |
| Number of Rows | 1 |
| Outside Diameter Design | Straight with Snap Ring Groove |
| Series | Nice® |
| Radial Dynamic Load Capacity | 5360 lbf |
| Radial Static Load Capacity | 2620 lbf |
| Application | Textile Machinery, Agrucultural Machinery, pulleys, idlers, Material Handling Equipment |
| Additional Details | 7520DLGTNTG18 – RBC NICE Ball Bearings – 7500 Series™ Heavy Duty Precision Ground Radial Bearings – 1.2500″ Bore, 2.5625″ OD, 0.7500″ Width |
| Manufacturer UPC Number | 637400292782 |
| Weight | 0.57 lb |
| Axial Static Load Capacity | 2620 lbf |
| Bearing Type | Precision Ground, Heavy Duty, Snap Ring |
