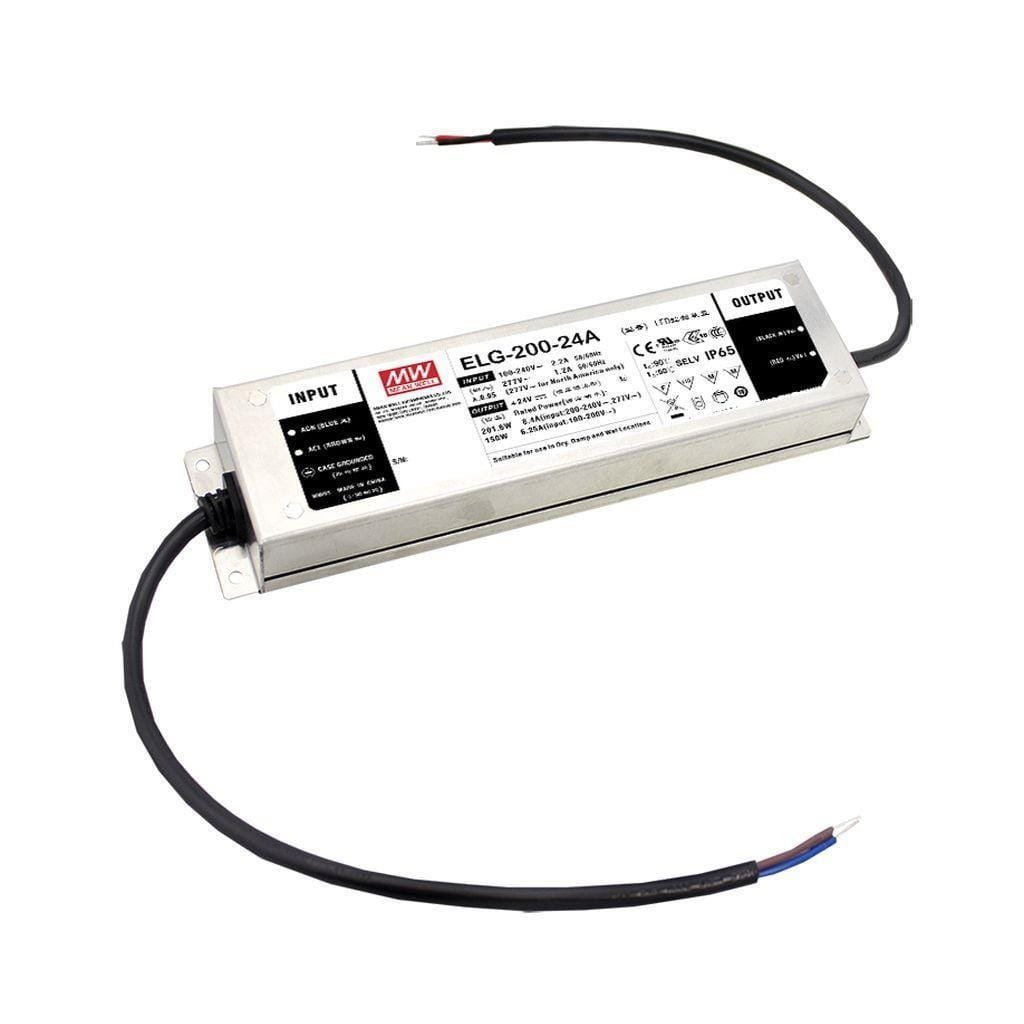

Mean Well ELG20042A LED Driver
Brand: Mean Well
P/N : ELG-200-42A
18
People watching this product now!
Description
Mean Well ELG20042A LED Driver
Mean Well ELG20042A LED Driver
LED drivers control and maintain the current supplied to the LEDs. Many LEDs require a constant current to operate optimally, and LED drivers can deliver this by adjusting the voltage to accommodate changes in the LED’s forward voltage drop.
Product Specification:
Brand | Mean Well | ||
Item number | ELG-200-42A | ||
Series | ELG-200 | ||
Description | AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC; Output 42Vdc at 4.76A; cable output; Adjust CC with Potentiometer | ||
Application | LED EN 61347 | ||
Technology | AC/DC Constant Current C.C. Constant Power C.P. Constant Voltage C.V. | ||
Power Format | Box Type – Enclosed Enclosed Metal housing | ||
Output Power (W) | 200 | ||
Output Voltage (V) | 42 | ||
Output Current (A) | 4.76 | ||
Input Voltage (V) | 100 – 305 110/230 universal input | ||
IP Rating | IP65 | ||
Width (mm) | 71 | ||
Height (mm) | 37.5 | ||
Depth (mm) | 244 | ||
Control Signals | Potentiometer | ||
Dimming Technology | Analog Potentiometer | ||
Housing Type | Metal |
