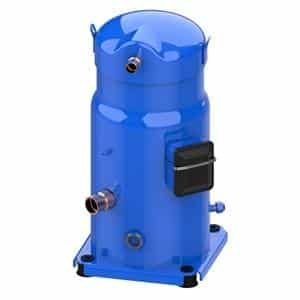

Danfoss SM120S4VC Scroll compressor

A scroll compressor is a type of positive displacement compressor use for compressing air or refrigerant in various applications.

Brand technique	Scroll compressor
Capacity control	Fixed speed
Colour	Blue
Configuration code	Single
Connection type	Brazed
Description	SM120-4
Diameter [mm]	254 mm
Discharge connection height [mm]	515 mm
Discharge connection pipe size [in]	7/8 in
Discharge connection size [in]	7/8 in
Drawing number	8552037b
Economizer	No
Factory HP [bar]	33 bar
Factory LP [bar]	25 bar
Family	SM
Fitting standard	ODF
Gauge port HP	None
Gauge port LP	Schrader
Generation code	C
Glass mounting	Threaded
Glass torque [Nm]	50 N-m
GP LP torque [Nm]	15 N-m
High side max pressure (Ps)	30.2 bar
High Side TS Max	150 °C
High Side TS Min	-35 °C
High Side Volume	1.1 L
High value of nominal voltage at 50Hz [V]	400 V
High value of nominal voltage at 60Hz [V]	460 V
High value of voltage range at 50Hz [V]	440 V
High value of voltage range at 60Hz [V]	506 V
Low side max pressure (Ps)	25 bar
Low Side TS Max	63 °C
Low Side TS Min	-35 °C
Low Side Volume	13.6 L
Low value of nominal voltage at 50Hz [V]	380 V
Low value of nominal voltage at 60Hz [V]	460 V
Low value of voltage range at 50Hz [V]	342 V
Low value of voltage range at 60Hz [V]	414 V
LRA	130 A
Maximum Operating Current [MOC]	24 A
MCC	29 A
Model number	SM120S4VC
Motor protection	Internal overload protector
Mounting torque [Nm]	21 N-m
