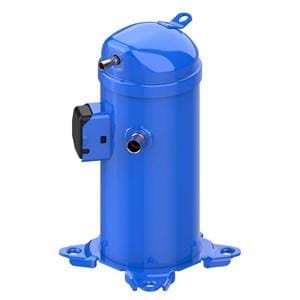

Danfoss HLM072T4LC6 Scroll compressor

A scroll compressor is a type of positive displacement compressor use for compressing air or refrigerant in various applications.

Brand technique	Scroll compressor
Capacity control	Fixed speed
Colour	Blue
Compressor power supply [V/Ph/Hz]	380-415/3/50 460/3/60
Configuration code	Single
Connection type	Brazed
Description	HLM072T4
Diameter [mm]	184 mm
Discharge connection height [mm]	422 mm
Discharge connection pipe size [in]	1/2 in
Discharge connection size [in]	1/2 in
Drawing number	0XR6089B-1
Economizer	No
Family	HLM
Fitting standard	ODF
Gauge port HP	None
Gauge port LP	None
Gaz equalization	None
Glass mounting	None
High side max pressure (Ps)	31.1 bar
High value of nominal voltage at 50Hz [V]	415 V
High value of nominal voltage at 60Hz [V]	460 V
High value of voltage range at 50Hz [V]	457 V
High value of voltage range at 60Hz [V]	506 V
Length [mm]	239 mm
Low side max pressure (Ps)	26.2 bar
Low value of nominal voltage at 50Hz [V]	380 V
Low value of nominal voltage at 60Hz [V]	460 V
Low value of voltage range at 50Hz [V]	342 V
Low value of voltage range at 60Hz [V]	414 V
LRA	82 A
MCC	15 A
Model Number	HLM072T4LC6
Motor protection	Internal overload protector
Network power supply [V/Ph/Hz]	380-415/3/50 460/3/60
Nominal cooling capacity 60 kBTU/h	72.7 kBtu/h
Nominal cooling capacity at 50Hz	16.2 kW
