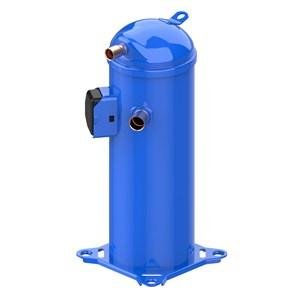

Danfoss HCM094T4LC6 Scroll compressor
Brand: Danfoss
P/N: HCM094T4LC6
10
People watching this product now!
Description
Danfoss HCM094T4LC6 Scroll compressor
Danfoss HCM094T4LC6 Scroll compressor
- A scroll compressor is a type of positive displacement compressor use for compressing air or refrigerant in various applications.
Product Specification:
| Brand technique | Scroll compressor |
| Capacity control | Fixed speed |
| Colour | Blue |
| Compressor power supply [V/Ph/Hz] | 380-415/3/50 460/3/60 |
| Configuration code | Single |
| Connection type | Brazed |
| Description | HCM094T4 |
| Diameter [mm] | 184 mm |
| Discharge connection height [mm] | 509 mm |
| Discharge connection pipe size [in] | 7/8 in |
| Discharge connection size [in] | 7/8 in |
| Drawing number | 0SR4103B-3 |
| Economizer | No |
| Family | HCM |
| Fitting standard | ODF |
| Gauge port HP | None |
| Gauge port LP | None |
| Gaz equalization | None |
| Glass mounting | None |
| High side max pressure (Ps) | 31.1 bar |
| High value of nominal voltage at 50Hz [V] | 415 V |
| High value of nominal voltage at 60Hz [V] | 460 V |
| High value of voltage range at 50Hz [V] | 457 V |
| High value of voltage range at 60Hz [V] | 506 V |
| Length [mm] | 232 mm |
| Low side max pressure (Ps) | 26.2 bar |
| Low value of nominal voltage at 50Hz [V] | 380 V |
| Low value of nominal voltage at 60Hz [V] | 460 V |
| Low value of voltage range at 50Hz [V] | 342 V |
| Low value of voltage range at 60Hz [V] | 414 V |
| LRA | 95 A |
| MCC | 21 A |
| Model number | HCM094T4LC6 |
| Motor protection | Internal overload protector |
| Network power supply [V/Ph/Hz] | 380-415/3/50 460/3/60 |
