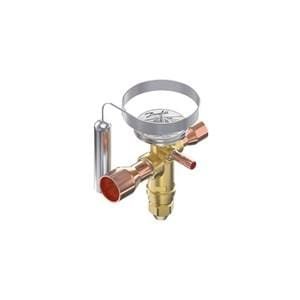

Danfoss 067N2154 Thermostatic expansion valve

A thermostatic expansion valve (TXV) is a type of metering device used in refrigeration and air conditioning systems. Its primary function is to control the flow of refrigerant into the evaporator coil by responding to changes in temperature. The TXV ensures that the right amount of refrigerant is allowed into the evaporator to optimize the system’s performance.

Body material	Brass
Bulb temperature max. [ºC]	100 °C
Bulb temperature max. [ºF]	210 °F
Capillary tube length [in]	59 in
Capillary tube length [mm]	1500 mm
Connection material	Copper
Direction	Straightway
Element temperature max. [°C]	110 °C
Element temperature max. [°F]	230 °F
Equalization connection type	SOLDER, ODF
Equalization size [in]	1/4 IN
Flow direction	Bi-flow
Flow direction indicator	Embossed 1-way arrow
Identical product	067N2174
Inlet connection type	SOLDER, ODF
Inlet size [in]	1/2 in
Max. Working Pressure [bar]	49 bar
Max. Working Pressure [psig]	711 psig
Orifice capacities [kW]	20 kW
Orifice capacities [TR]	6 tons
Orifice size	6
Outlet connection type	SOLDER, ODF
Outlet size [in]	7/8 in
