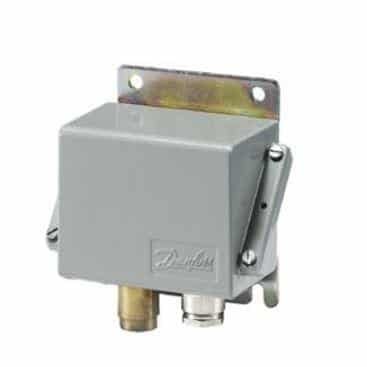

Danfoss 060310566 Pressure Switch

Danfoss 060310566 Pressure Switch

Danfoss 060310566 Pressure Switch

A pressure switch is an electromechanical device that monitors the pressure of a system and activates or deactivates a connected electrical circuit when the pressure reaches a specific setpoint. These switches are commonly used in a variety of applications to provide control and protection based on pressure conditions. The pressure switch includes a pressure sensing element that responds to changes in pressure. This element can be a diaphragm, bellows, or other mechanism that deforms under pressure. Pressure switches typically have a set of electrical contacts that open or close based on the pressure conditions. When the pressure is below the setpoint, the contacts may be in one state, and when the pressure reaches or exceeds the setpoint, the contacts switch to another state.

Product Specification:

• Regulating Range: 0.0 to 8 bar
• Differential Range: 0.4 to 1.5 bar
• Max. Working Pressure: 12 bar
• Connection Size: 1/4 bsp
• Contact Function: SPDT Gold
• Reset: Automatic
