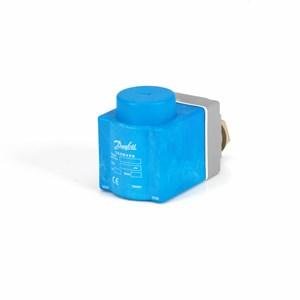

Danfoss 018F6732 Solenoid Coil
Brand: Danfoss
P/N : 018F6732
19
People watching this product now!
Description
Danfoss 018F6732 Solenoid Coil
Danfoss 018F6732 Solenoid Coil
- A solenoid coil refers to the coil of wire within a solenoid, a type of electromechanical device. Solenoids are commonly used in various applications where the controlled release or operation of a mechanical component is required in response to an electrical signal. The solenoid coil is a crucial part of the solenoid and plays a key role in its operation.
Product Specification:
| Cable diameter [mm] [Max] | 11 mm |
| Cable diameter [mm] [Min] | 6 mm |
| Coil connection | Connection box |
| Coil design standard | VDE 0580 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Colour | Blue |
| Compliance | EN 60730-1 |
| Conductor area [mm2] | 0.75 – 1.5 mm2 |
| Duty rating | Continuous |
| Electrical connection | Terminal box |
| Electrical connection size | Pg 13.5 |
| Enclosure rating IP | IP67 |
| Frequency [Hz] | 50/60 Hz |
| Spare part number | 018F6193 |
| Supply voltage 50Hz Max [V] | 230 V |
| Supply voltage 50Hz Min [V] | 220 V |
| Supply voltage 60Hz Max [V] | 230 V |
| Supply voltage 60Hz Min [V] | 220 V |
| Supply voltage [V] AC [Max] | 230 V |
| Supply voltage [V] AC [Min] | 220 V |
| Type | BE230CS |
| Type designation | BE230CS |
